Installing latest solace-standard. Under System > Service
netstat -tulpn on the active broker in an HA setup:
ipv6
ipv4

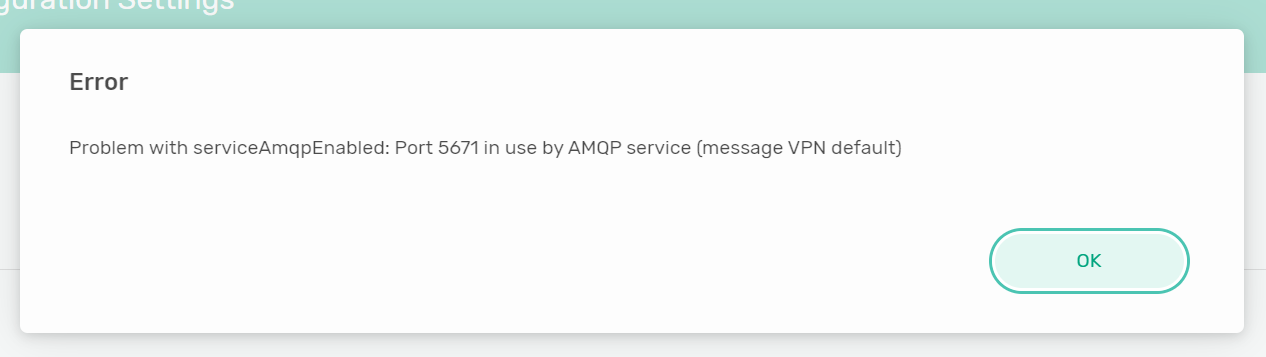

When trying to set it to 5671:
Hi,
Software version os PubSub+ uses 5672 for AMQP service:
[appuser@solace14 sw]$ netstat -anp |grep LISTEN|grep 5672
tcp 0 0 0.0.0.0:5672 0.0.0.0:* LISTEN 537/dataplane-linux
tcp6 0 0 :::5672 :::* LISTEN 537/dataplane-linux
[appuser@solace14 sw]$
As far as I can see in software version, you cant set SSL port the same as plaintext:
solace14(configure/service/amqp)# shut
All AMQP clients will be disconnected.
Do you want to continue (y/n)? y
solace14(configure/service/amqp)# listen-port 5672 ssl
solace14(configure/service/amqp)# no shut
ERROR: Port 5672 in use by AMQP service (message VPN default)
Command Failed
but it works fine when you do it for available port, ie. 56720.
You have to change the port you want for SSL AMQP service. After changing the port check the status of the service by show service command.

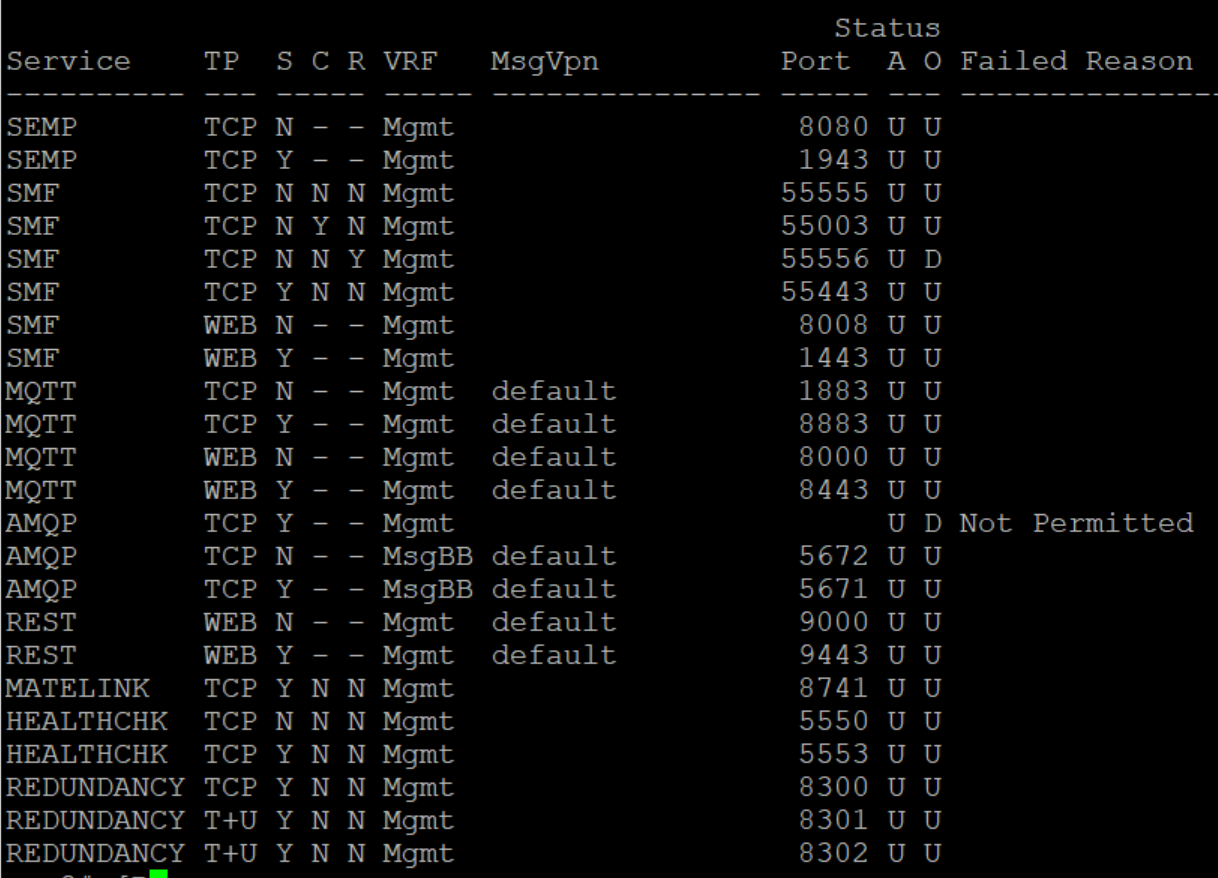

There are some other tasks that you need to follow to make it active and visible via netstat command, show service will show you the reason of failure (and therefore port not visible on netstat) like in my case - cert not configured for the service - refer to the image attached.
well it’s not that the port is not working correctly, it’s that the interface shows the port as 0 while it’s actually 5671 ?
Can you paste show service output for AMQP part as on my screen ? I doubt the TLS AMQP service is administratively up.
hmm, maybe you mean another overview, what command did you use and where?
The lower part with kind of “table”
When I invoke “show service” in enabled mode I get the following results - beginning like on your screen, bottom as on the screenshot of my first reply here. Below is the the text output:
solace14# show service
Msg-Backbone: Enabled
VRF: management
SMF: Enabled
Web-Transport: Enabled
REST Incoming: Shutdown
REST Outgoing: Shutdown
MQTT: Shutdown
AMQP: Enabled
Health-check: Enabled
Health-check SSL: Enabled
Mate-link: Enabled
Redundancy: Enabled
Max Incoming Connections: 100
Service SMF: 100
Service Web-Transport: 100
Service REST: 100
Service MQTT: 100
Service AMQP: 100
Max Outgoing Connections:
Service REST: 100
Max SSL Connections: 100
Event Threshold Set Value Clear Value
Incoming Connections 80%(80) 60%(60)
Service SMF 80%(80) 60%(60)
Outgoing Connections
Service REST 80%(80) 60%(60)
SSL Connections 80%(80) 60%(60)
Flags Legend:
TP - Transport
T+U - TCP and UDP
S - SSL (Y=Yes, N=No, -=not-applicable)
C - Compressed (Y=Yes, N=No, -=not-applicable)
R - Routing Ctrl (Y=Yes, N=No, -=not-applicable)
VRF - VRF (Mgmt=management, MsgBB=msg-backbone)
A - Admin State (U=Up, D=Down, -=not-applicable)
—Press any key to continue, or `q’ to quit—
O - Oper State (U=Up, D=Down, -=not-applicable)
Status
Service TP S C R VRF MsgVpn Port A O Failed Reason
SEMP TCP N - - Mgmt 8080 U U
SEMP TCP Y - - Mgmt 1943 U D No Cert
SMF TCP N N N Mgmt 55555 U U
SMF TCP N Y N Mgmt 55003 U U
SMF TCP N N Y Mgmt 55556 U D
SMF TCP Y N N Mgmt 55443 U D No Cert
SMF WEB N - - Mgmt 8008 U U
SMF WEB Y - - Mgmt 1443 U D No Cert
MQTT TCP N - - Mgmt default 1883 U D Global Shutdown
MQTT TCP Y - - Mgmt default 8883 U D No Cert
MQTT WEB N - - Mgmt default 8000 U D Global Shutdown
MQTT WEB Y - - Mgmt default 8443 U D No Cert
AMQP TCP Y - - Mgmt 56720 U D No Cert
AMQP TCP N - - MsgBB default 5672 U U
AMQP TCP Y - - MsgBB default 5671 U D No Cert
AMQP TCP Y - - MsgBB mvpn 57621 U D No Cert
REST WEB N - - Mgmt default 9000 U D Global Shutdown
REST WEB Y - - Mgmt default 9443 U D No Cert
MATELINK TCP N N N Mgmt 8741 U D Missing Mate Address
HEALTHCHK TCP N N N Mgmt 5550 U U
HEALTHCHK TCP Y N N Mgmt 5553 U D No Cert
REDUNDANCY TCP Y N N Mgmt 8300 U D
REDUNDANCY T+U Y N N Mgmt 8301 U D
REDUNDANCY T+U Y N N Mgmt 8302 U D
solace14#
As you can see there is Admin State up for TLS, but operation status down due to lack of cert.
The output from “down” node shows that ports are the same as on “up” node. I have just recreated one of containers to have fresh installation and situation on my side is the same (except lack of certs, but ports do match) :
AMQP TCP Y - - Mgmt U D No Cert
AMQP TCP N - - MsgBB default 5672 U U
AMQP TCP Y - - MsgBB default 5671 U D No Cert
5672 for plain text
5671 for secured channel
And Broker Manager also shows port 0. So I guess you found a bug in Broker Manager…
And setting SSL is not needed.
yay I found a bug ?♂️
